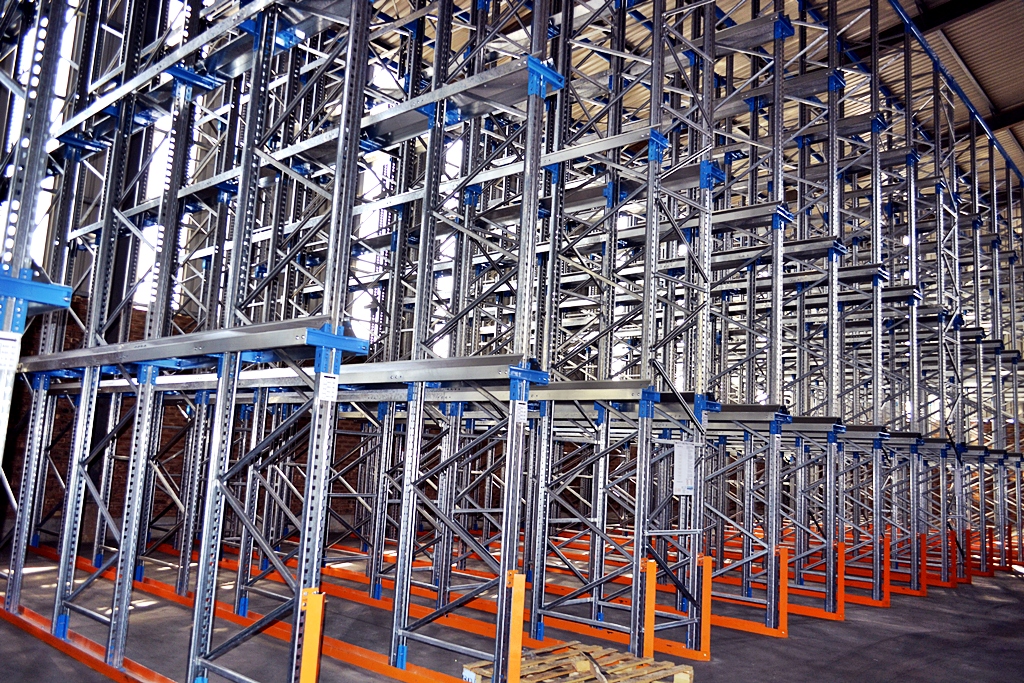

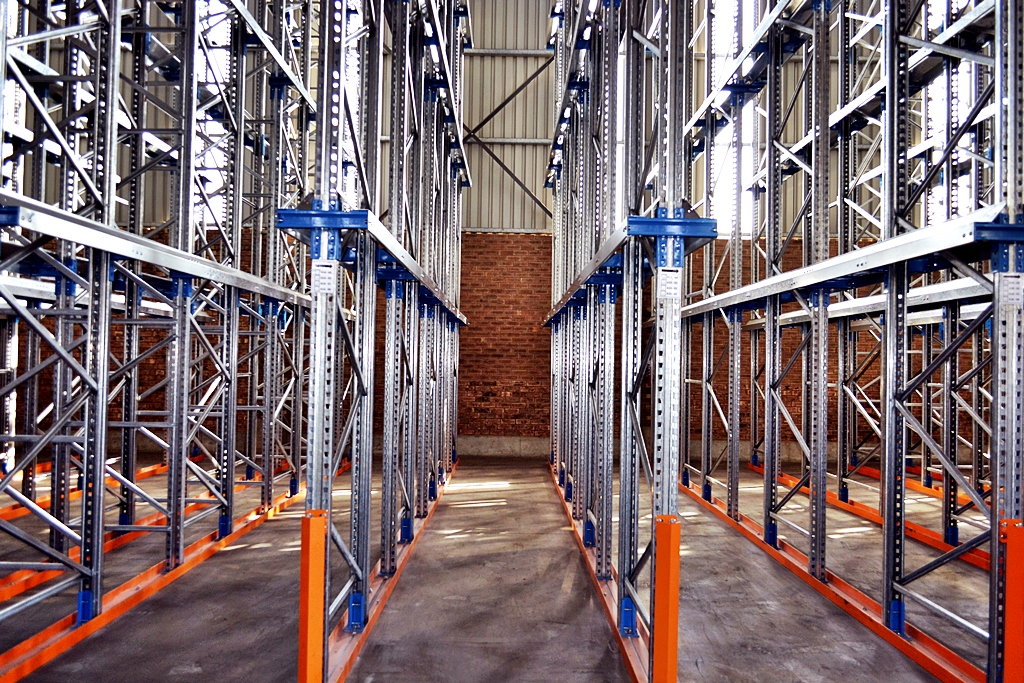

Drive-In / Drive-Thru Racking
Drive-In Racking is a compact, high-density storage system designed specifically for palletised goods where multiple unit loads per SKU need to be stored, and where individual access to every pallet is not essential. By allowing forklifts to drive directly into the racking lanes, this system delivers the most effective use of available warehouse space. Drive-In configuration uses a single aisle for maximum cube utilisation with first-in, last-out (FILO) storage, while Drive-Thru uses a two-aisle layout to support first-in, first-out (FIFO) operations. As a compact storage system, it optimises the available surface area to its fullest — making it particularly well suited to controlled-temperature environments where reducing the total cooled volume is critical.
See It in Action
Key Features
- Compact high-density storage that fully exploits available warehouse surface area
- Drive-In (FILO) with single aisle for maximum cube utilisation, or Drive-Thru (FIFO) with two-aisle access
- Designed for multiple unit loads of the same product reference per lane
- Precise warehouse management with ordered placement of each product reference
- Ideal for cold and freezer storage — reduces total cooled volume significantly
- Part of the compact storage family alongside Shuttle, VNA, Mobile Pallet, and Live Pallet systems
Applications
- Cold storage and freezer warehouses
- Bulk storage and production staging areas
- Pre-marshalling and distribution zones
- Food and beverage production facilities
- Building materials and construction supply
More in Racking Systems
Selective Pallet Racking
Selective pallet racking is the most common and widely used method of storing pallets in a warehouse. Designed to provide ready access to every pallet in your storage, this system handles unitised pallet cargo and works seamlessly with forklifts that can pick up cargo from any position. It can be configured to store products at considerable heights, is economical and durable, easy to install, and levels are easily adjustable for both temporary and permanent settings — available in light, medium, and heavy duty configurations. Selective pallet racking is ideal for organisations with multiple SKUs and is perfectly suited where flexibility, access, and speed of operation are the main objectives.
View Details
VNA Racking (Very Narrow Aisle)
Very Narrow Aisle Racking is purpose-built to maximise pallet storage capacity while maintaining individual access to every pallet position. By reducing aisle widths to between 1.7 and 2.2 metres — only marginally wider than the handling equipment itself — VNA racking dramatically increases the number of pallet positions within your existing warehouse footprint. The system is served by specialised handling equipment such as combination order pickers, turret trucks, stacker cranes, and dedicated VNA trucks, all designed to operate precisely within these confined aisles. With rack heights reaching up to 17 metres, VNA racking turns vertical space into a serious storage asset.
View Details
Pallet Shuttle Racking
Shuttle Racking is a high-density storage solution ideal for operations with large volumes of pallets per SKU. Lanes of up to 50 pallets deep can be stored in either First In, First Out (FIFO) or First In, Last Out (FILO) configurations. Remote-controlled robot shuttles carry pallets in and out of deep storage tunnels on tracks beneath the beams, freeing your operators to focus on other tasks. A standard forklift places the shuttle into the rack at the desired height and position, loads the pallet onto the shuttle, and the system takes care of the rest — no specialist equipment or operator training required.
View DetailsInterested in Drive-In / Drive-Thru Racking?
Get in touch with our team for expert advice, a free site assessment, and a detailed quotation tailored to your requirements.
